ZB1260S-450
Characteristics

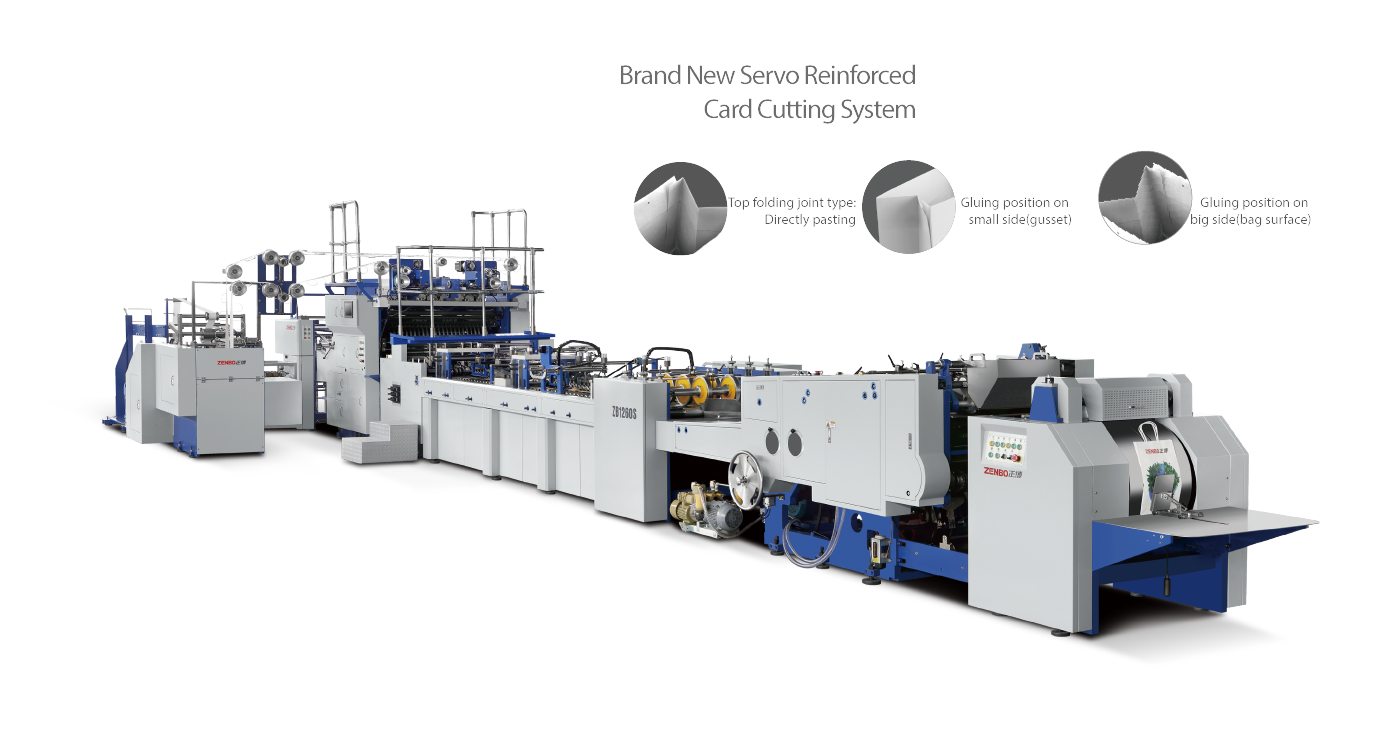

ZB1260S-450 Fully automatic sheet feeding paper bag making machine (independent innovation) adopts international advanced production process and management system. Humanized intelligence operation interface combines with PLC and Servo control system make this machine’s technology, performance and production efficiency achieve the leading level in the world.

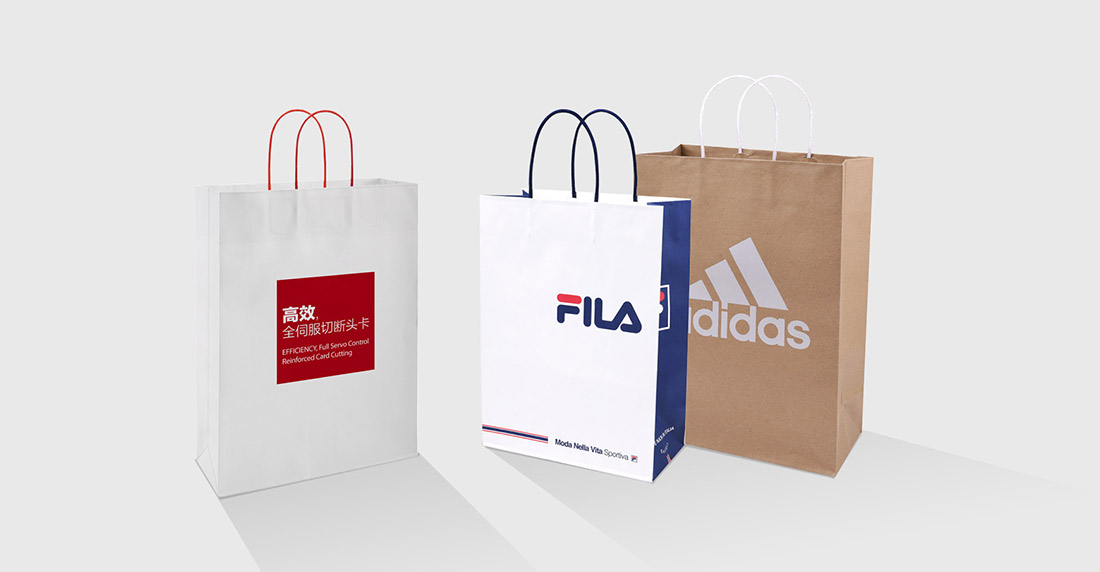

ZB1260S-450 is a fully automatic paper bag making machine which can in-line produce twisted rope handle.This machine can produce 3 types paper bag, 3 different crafts as below:
1.Paper handle making、handle pasting、top folding、tube forming、gusset forming、 square bottom open、bottom gluing、bottom pasting、compaction output. 2.Paper handle making、handle pasting（without top folding)、tube forming、gusset forming、 square bottom open、bottom gluing、bottom pasting、compaction output. 3. Reinforce card making、reinforce card pasting、top folding、tube forming、gusset forming、 hole punching、square bottom open、bottom gluing、bottom pasting、compaction output.
This machine equips advanced compact servo handle cut-off system to replace the traditional complex mechanical structure, which reduced the setup time and supplied a comfortable operation space. The bag making machine and handle making unit have separate servo control systems to avoid the handle waste.
Product Video
Technical parameter

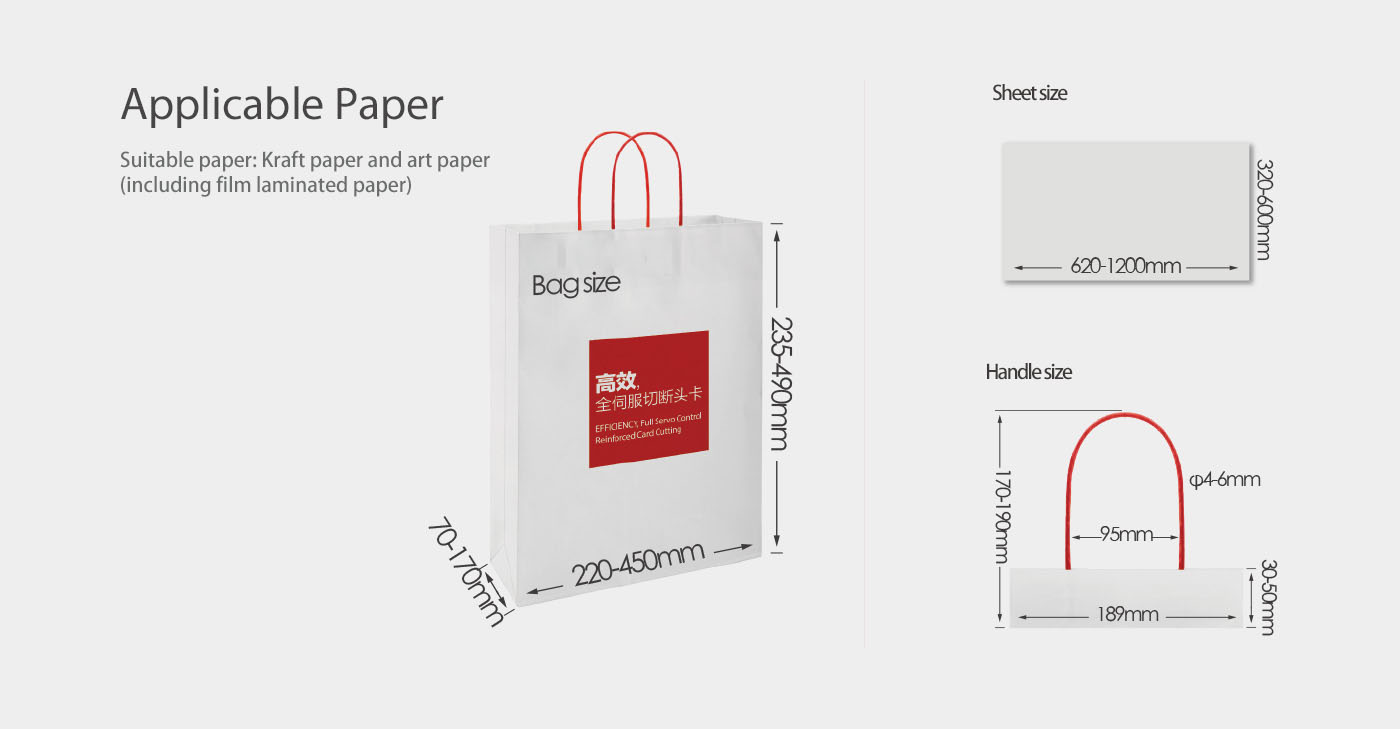

| Technical Parameters |  |
 |
 |
|---|---|---|---|
| Max.Sheet(LxW) | 1200X600 | 1200X600 | 1200X600 |
| Min.Sheet(LxW) | 620X320 | 620X320 | 620X320 |
| Sheet Weight | 120g-190g | 120g-190g | 120g-190g |
| Bag Width | 220-450mm | 220-450mm | 220-450mm |
| Bottom Width | 70-170mm | 70-170mm | 70-170mm |
| BottBag Length | 235-490mm | 235-540mm | 235-490mm |
| BoTop Folding Width | 40-60mm | —— | 40-60mm |
| Handle Patch Length | 189mm | 189mm | 189mm |
| Handle Patch Width | 30-50mm | 30-50mm | 30-50mm |
| Handle Patch Weight | 140g-200g | 140g-200g | 250g-350g |
| Handle Patch Roll Diameter | φ 1000mm | φ 1000mm | φ 1000mm |
| Handle Patch Roll Width | 60-100mm | 60-100mm | 60-100mm |
| Paper Rope Diameter | 4-6mm | 4-6mm | —— |
| Handle Rope Height | 170-190mm | 170-190mm | —— |
| Speed | ■ | 40-70bags/min | ■ |
| Total Power | ■ | 20kw | ■ |
| Total Weight | ■ | 24.5T | ■ |
| Machine Size | ■ | 16450x5300x3100mm | ■ |
| Glue Type | Water soluble cold glue(hot-melt glue) |
Process flow
